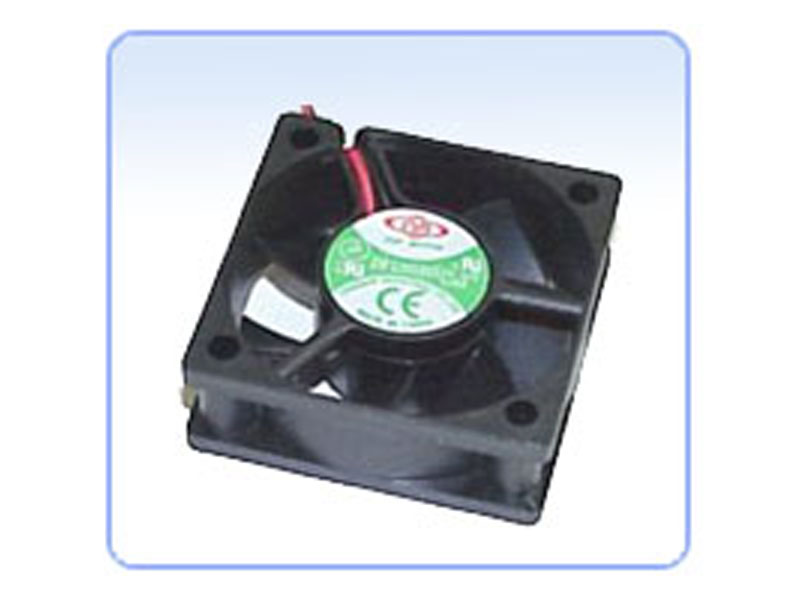

Top Motor Fan 50mm x 20mm Ball Bearing High RPM 3pin

MFG Top Motor
MPN DF125020PH-3

Electrical Specifications
Operating Voltage: DC 12 Volts
Voltage Range: 5 - 15 Volts
Startup Voltage: 7V
Power Supply: 2.5 Watts
Line Current: 0.21 Amps
Locked Rotor Current 0.21 Amps
Nominal Speed: 5300 RPM

Mechanical Specifications

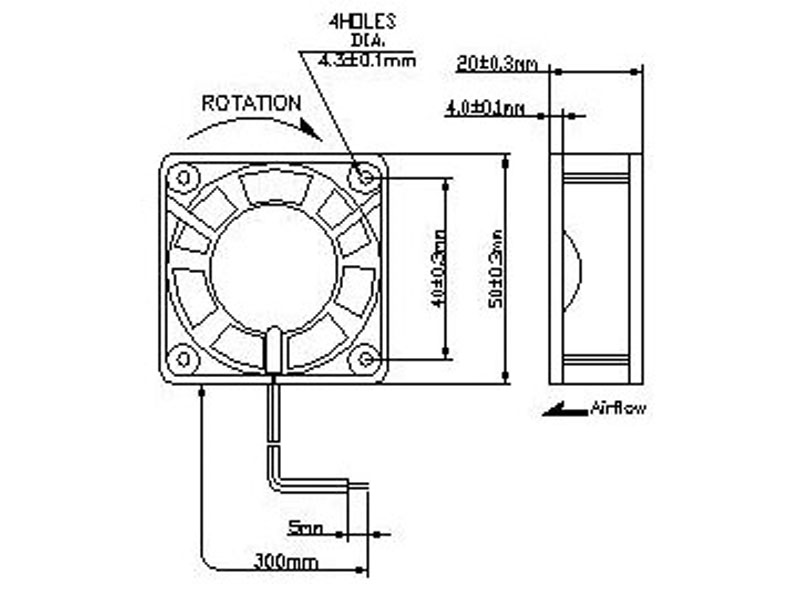

Dimensions: 50 x 50 x 20 mm
Weight 38 gm
Max Airflow @ 0 in H2O 16.1 CFM
Max Pressure @ 0 CFM 5.5 mm H2O
Noise 30.6 dBA

Ball bearing, Life expectancy 35,000 hour MTBF at 25 deg C

3wire bare leads with standard 3pin motherboard type power connector, 8 inch lead length from edge of fan
