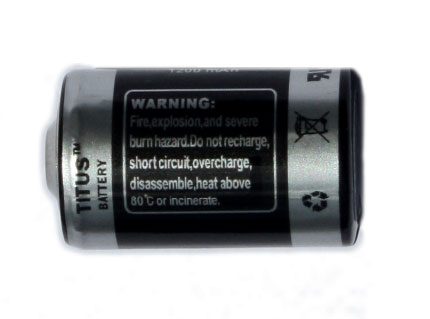

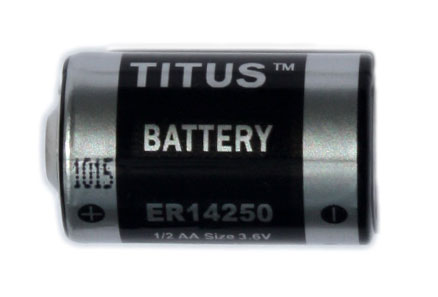

[BALITI142] Titus ER14250 1/2AA 3.6V Lithium Battery

Titus ER14250 1/2AA 3.6V Lithium Battery

Lithium thionyl chloride type 3.6V battery with 10 year rated shelf life to 90%. Bobbin wound construction. Cells are marked with the date of manufacture.

Brand
Manufacturer
RoHS Compliant
- N/A
MPN
- ER14250

Same-day shipping on orders placed Mon–Fri before 2 PM CST
Ships from Katy, Texas
Sold & shipped by Best Byte Computers
Purchase orders welcome · Ask for a quote

Lithium Thionyl Chloride battery. 3.6 Volt, 1.2 Ah, High energy density, wide temperature range, low self discharge rate with long storage life. This is the bobbin wound version

Please be advised the date on the Battery is the manufacture date

Highest Quality & Value

high energy density
High and stable operating voltage during most of the lifetime in the application
Wide range of operating temperature -55C ~ +85C
long operating time
low self-discharge rate less than 1% after 1 year of storage
long storage life over 10 years under normal room temperature

Main Application

Utility metering
Automatic meter reading
Memory back-up
Security systems
tracking system
Industrial applications

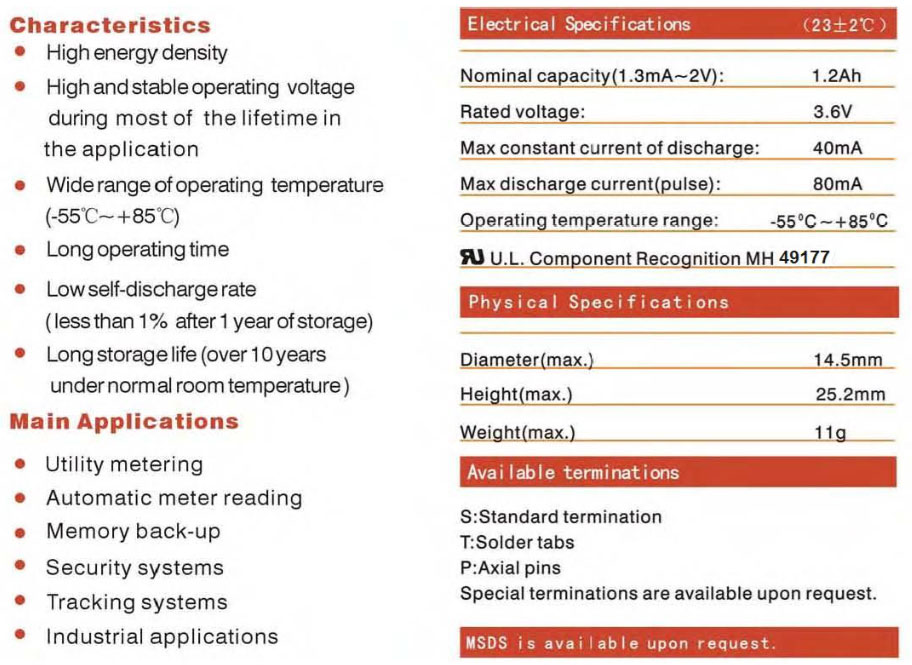

Electrical Specification

Nominal capacity(1.3mA~2V): 1.2Ah
Rated Voltage: 3.6V
Max constant current of discharge: 40mA
Max discharge current (pulse): 80mA
Operating temperature range: -55C~+85C

Battery Physical Specification (single battery)

Diameter: 14.5 mm
Height: 25.2 mm
Weight: 11g

Terminals

S: Standard

Equivalent Battery Cross Reference:

TL-2150, TL-4902, TL-5101, TL- 5151, TL-5902; Saft LS-14250, LS14250, LS-14250C, XL-050, Sonnenschein SL-350, SL-750; Toshiba ER3V, ER4V; Maxell ER3, ER3S, Eagle Picher LTC-9C, Vitzro SB-AA02,S B-AA02P, ER14250 and others.

Specifications

Brand	Titus
Manufacturer	Titus
RoHS Compliant	N/A
MPN	ER14250
