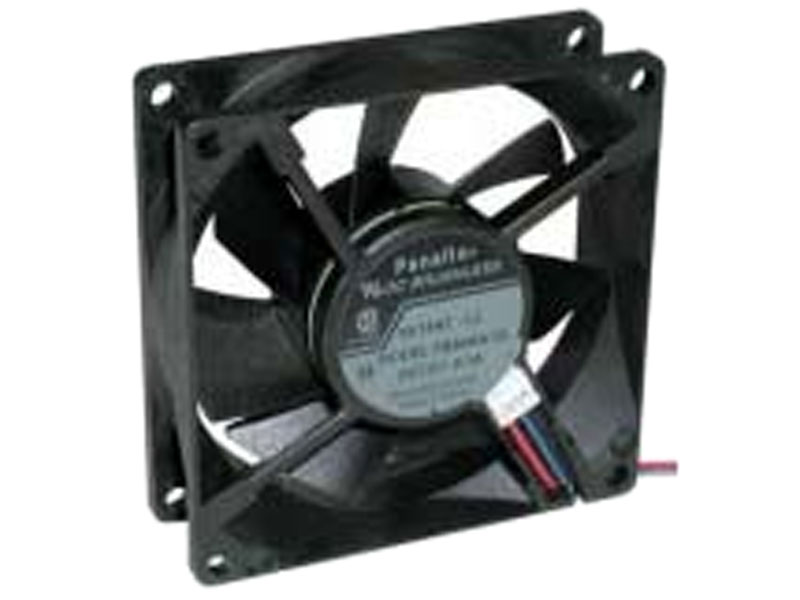

Panaflo 120mm x 38mm Fan, FBA12G12L1A, Low RPM, Bare Wires

Brand
Manufacturer
MPN
- FA12PAL1A

Same-day shipping on orders placed Mon–Fri before 2 PM CST
Ships from Katy, Texas
Sold & shipped by Best Byte Computers
Purchase orders welcome · Ask for a quote

MFG Panasonic
MPN FBA12G12L1A

Panaflo fan parts ending in 1A lack the RPM signal output. Order models ending in 1BX if fan speed monitoring is needed.

Basic Data (nominal at room temperature)

	Rated Voltage (V)	Operating Voltage (V)	Rated Current (mA)	Rated Input (W)	Nominal Speed (r/min)	Maximum Air Flow		Maximum Air Pressure		Noise (dB-A)
	Rated Voltage (V)	Operating Voltage (V)	Rated Current (mA)	Rated Input (W)	Nominal Speed (r/min)	(m³/min)	(CFM)	(mmH₂O)	(Pa)	Noise (dB-A)
FBA12G12L1A	12	7-13.8	180	2.16	1700	1.95	68.9	3.30	32.4	30.0
FBA12G12H1A	12	7-13.8	460	5.52	2500	2.94	103.8	6.80	66.7	41.5
FBA12G12U1A	12	7-13.8	510	6.12	2750	3.25	114.7	8.0	78.0	45.5

Specifications

Brand	Panasonic
Manufacturer	Panasonic
MPN	FA12PAL1A
