Maxell CR2032 3V Lithium Coin Battery Blister Pack Single Cell

Price is per individual battery. Order multiples of 5 to receive complete cards.

MFG Maxell
MPN CR2032 / CR 2032 / CR-2032
UPC 025215736483
URL www.Maxell.co.jp
PDF Datafile

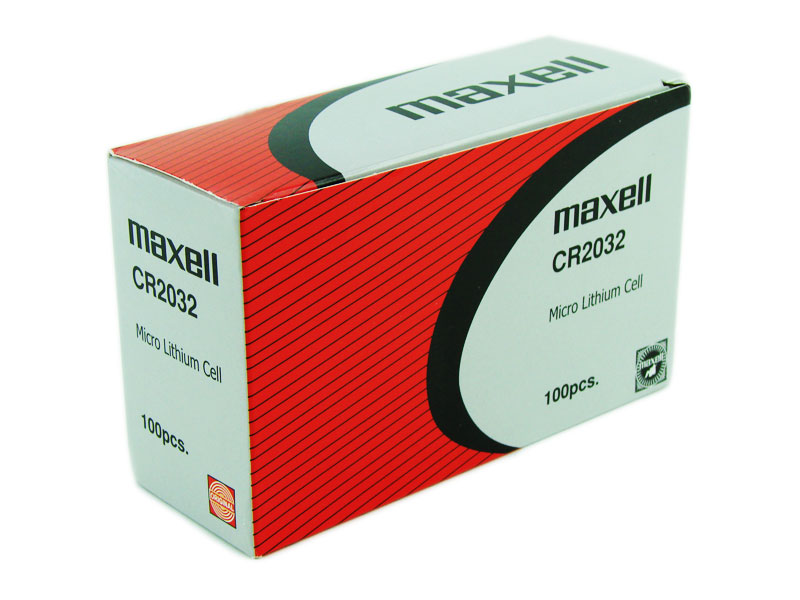

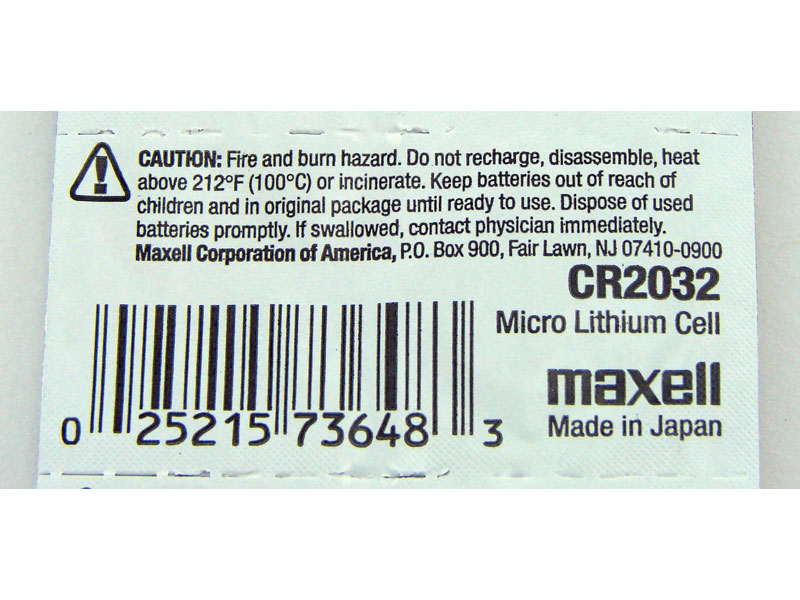

Maxell retail blister packaging with hologram logos, cards perforated to separate batteries. Packed 5pcs per card, 20 cards/100pcs per box, 20 boxes/2000pcs per master carton.

Specifications:
Chemistry Manganese dioxide Li/Organic Electrolyte
Nominal Voltage 3V
Nominal Capacity 220mAh
Nominal Discharge Current 0.2mA
Weight 3.0g
Dimensions Diameter 20.0mm / Height 3.2mm
UL Recognition MH12568
Shelf Life 10 years

Equivalent Batteries Cross Reference:
Energizer (Eveready) ECR2032, Duracell DL2032, Rayovac CR2032, Varta CR2032, Renata CR2032, Bulova CR2032, Seiko SB-T51, GP GPCR2032, IEC CR2032

Application:
Timepieces / calculators / cameras / medical instruments / office equipment / backup power for memory ICs and RTC / home electronic instruments / automobiles (keyless entry) / PC boards / Widely used as a PC motherboard clock battery
